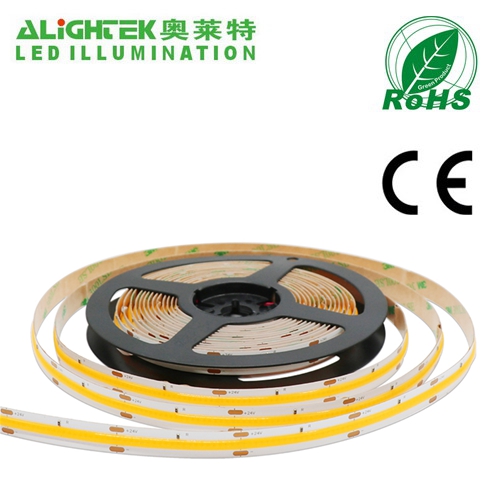

14W COB LED strip with 512 LED chips

COB LED strip is the type of new flip chip on board LED strip lights which is really good with uniform light illumination.

It has perfect lighting when use it with LED Aluminium channel profile.

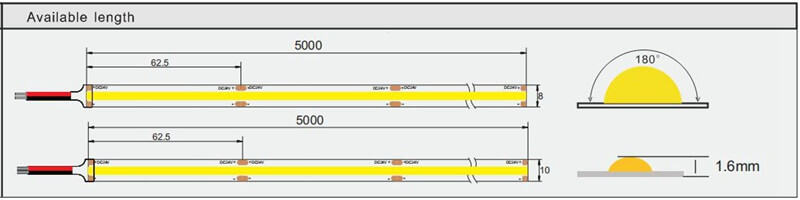

512 COB LED tape Size & Minimum unit: 62.5mm

512 mimium length COB.jpg


Features & advantages

Chip on board LED strip lights

High density LED chips without dark light spot

High CRI>90Ra, 3 years warranty

Excellent flexibility without harm on LED chips

Great for LED linear lighting solution

Invisible LEDs compared with traditional LED strip lights

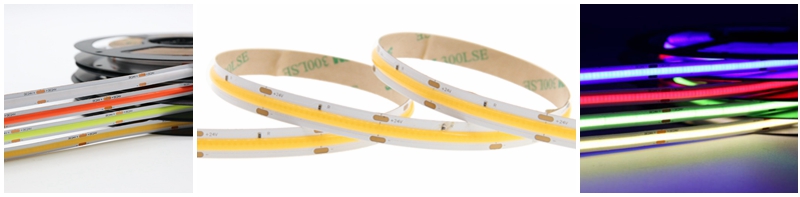

RGB COB LED tape lights.jpg


                                                         512 LEDs Product's parameters
Model numberCOB512D24V8COB512D24V10
LED chips / led light sourceCOB 512pcs LED chipsCOB 512pcs LED chips
Input voltage24vDC24vDC
Input current / meter0.43A / meter0.58A/m
Wattage10W/meter14W/meter
Size5000*8mm5000*10mm
Luminous flux1100lm/meter1500lm/meter
Luminous efficiency80-120LM/W80-120LM/W
CRI>90Ra>90Ra
SCDM<3<3
Beam Angle180°180°
Color temperature range2700K2700K
3000K3000K
4000K4000K
6000K6000K
Available colorred, green, bulered, green, bule
Minimum cuttable length62.5mm62.5mm
PCB materialdouble sides Rolled Copper FPCdouble sides Rolled Copper FPC
PCB Width8mm10mm
PCB thickness2OZ2OZ
PCB colorWhiteWhite
Adhesive tape3M 300LSE Double Sided Adhesive Tape3M 300LSE Double Sided Adhesive Tape
Wire at endsingel end with 15cm red & black wiresingel end with 15cm red & black wire
IP ratingIP20, IP65, IP67, IP68IP20, IP65, IP67, IP68
Lifespan50,000 hours by keep it 72% brightness50,000 hours by keep it 72% brightness
Packing5meter / roll with anti-static bag5meter / roll with anti-static bag
Net weight156g / roll171g / roll
CertificatesCE, RoHSCE, RoHS

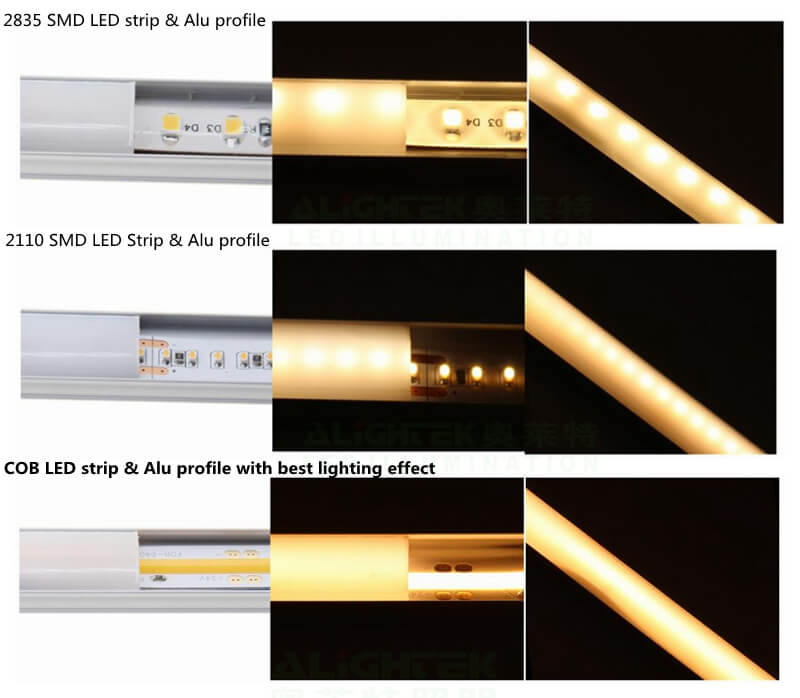

COB LED strip VS SMD LED strip

COB led strip with SMD LED strip.jpg

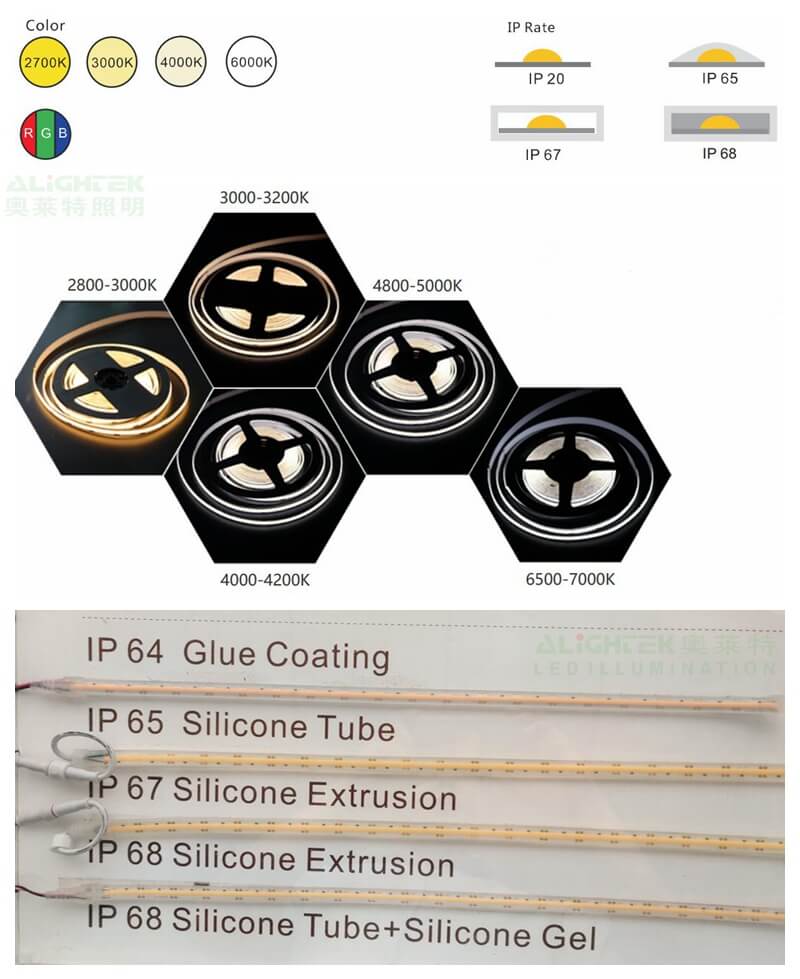

Available color & IP rating

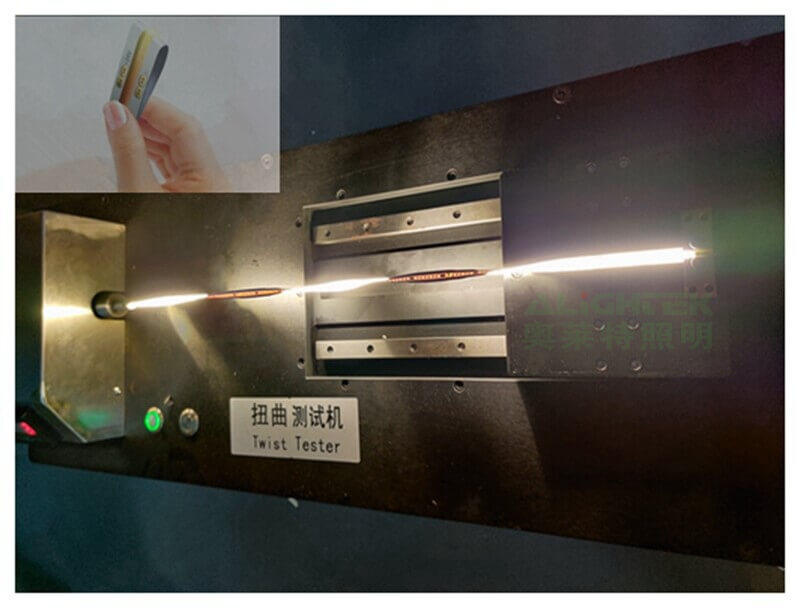

Rough bent testing on our COB LED strip lights, it can be bent freely, the FCOB LED strip lights won't broken easily.

bent testing COB LED strip lights.jpg

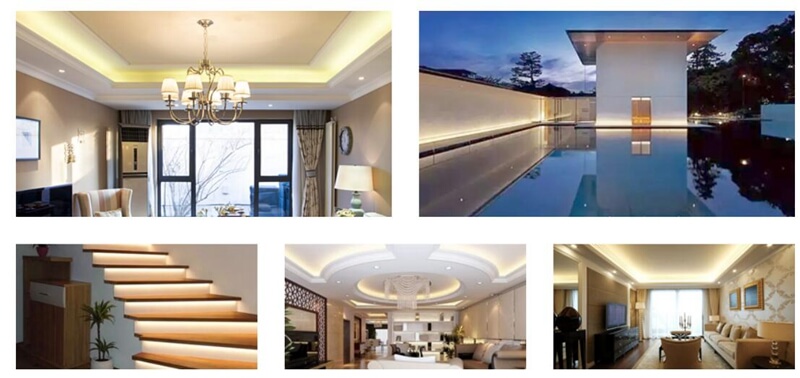

Applications

Residential lighting: Home decoration illumination, etc

Commercial lighting: shops, supermarkets, hotels

Outdoor lighting: Bridge, building outline lighting solution

COB LED strip applications .jpg
