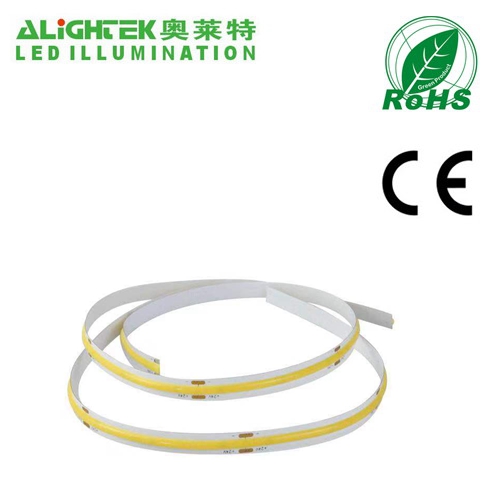

6W COB LED strip with 240 LED chips

COB LED strip is the type of new flip chip on board LED strip lights which is really good with uniform light illumination.

It has perfect lighting when use it with LED Aluminium channel profile.


Item's Size & Minimum unit: 100mm

240LED minimum length.jpg


Features & advantages

Chip on board LED strip lights

High density LED chips without dark light spot

High CRI>90Ra, 3 years warranty

Excellent flexibility without harm on LED chips

Great for LED linear lighting solution

Invisible LEDs compared with traditional LED strip lights


                                                    Product's parameters
Model numberCOB240D24V8
LED chips / led light sourceCOB 240pcs LED chips
Input voltage24vDC
Wattage6W / meter
Size5000*8mm
Luminous flux600lm/meter
Luminous efficiency80-110LM/W
CRI>90Ra
Beam Angle180°
Color temperature range2700K
3000K
4000K
6000K
Available colorred, green, bule
Minimum cuttable length100mm
PCB materialdouble sides Rolled Copper FPC
PCB Width8mm
PCB thickness2OZ
PCB colorWhite
Adhesive tape3M 300LSE Double Sided Adhesive Tape
Wire at endsingel end with 15cm red & black wire
IP ratingIP20, IP65, IP67, IP68
Lifespan50,000 hours by keep it 72% brightness
Packing5meter / roll with anti-static bag
Net weight136g / roll
CertificatesCE, RoHS

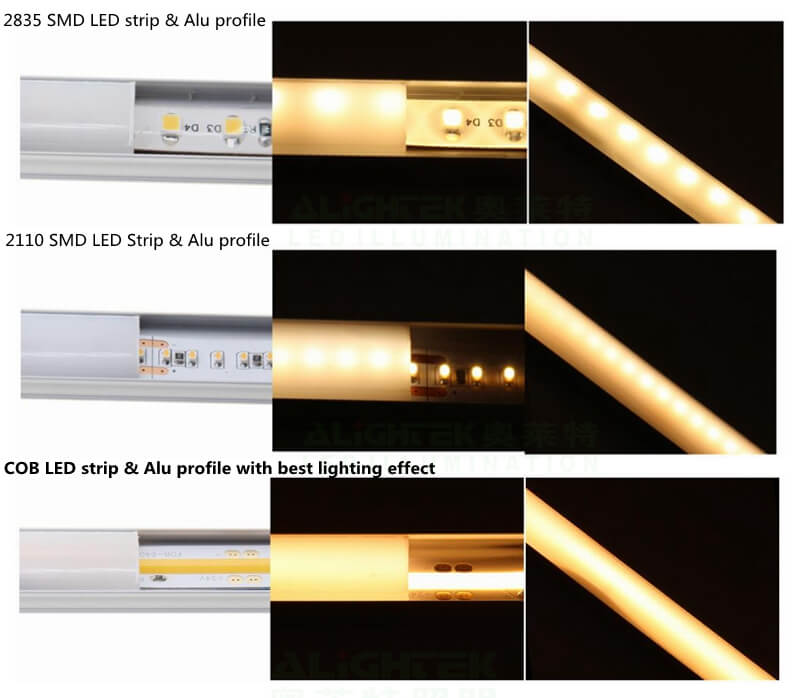

COB LED strip VS SMD LED strip

COB led strip with SMD LED strip.jpg

Available color & IP rating

Rough bent testing on our COB LED strip lights, it can be bent freely, the FCOB LED strip lights won't broken easily.

bent testing COB LED strip lights.jpg

Applications

Residential lighting: Home decoration illumination, etc

Commercial lighting: shops, supermarkets, hotels

Outdoor lighting: Bridge, building outline lighting solution

COB LED strip applications .jpg
