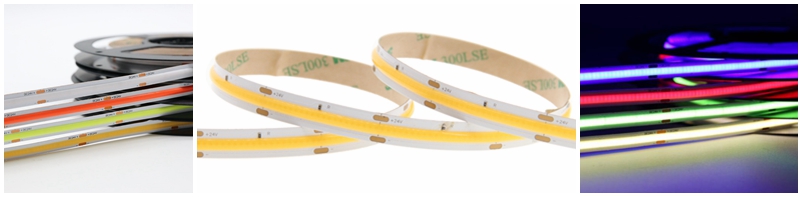

COB LED strip is the type of new flip chip on board LED strip lights which is really good with uniform light illumination.
It has perfect lighting when use it with LED Aluminium channel profile.
384 chips COB LED tape Size & Minimum unit: 83.33mm
Features & advantages
Chip on board LED strip lights
High density LED chips without dark light spot
High CRI>90Ra, 3 years warranty
Excellent flexibility without harm on LED chips
Great for LED linear lighting solution
Invisible LEDs compared with traditional LED strip lights
| 384 LEDs Product's parameters | ||
| Model number | COB384D24V8 | COB384D24V10 |
| LED chips / led light source | COB 384pcs LED chips | COB 384pcs LED chips |
| Input voltage | 24vDC | 24vDC |
| Wattage | 8W/meter | 12W/meter |
| Size | 5000*8mm | 5000*10mm |
| Luminous flux | 800lm/meter | 1200lm/meter |
| Luminous efficiency | 80-120LM/W | 80-120LM/W |
| CRI | >90Ra | >90Ra |
| Beam Angle | 180° | 180° |
| Color temperature range | 2700K | 2700K |
| 3000K | 3000K | |
| 4000K | 4000K | |
| 6000K | 6000K | |
| Available color | red, green, bule | red, green, bule |

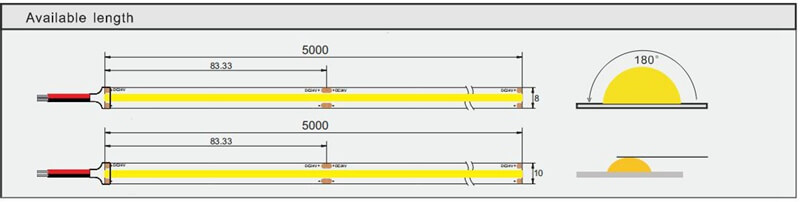

| Minimum cuttable length | 83.33mm | 83.33mm |
| PCB material | double sides Rolled Copper FPC | double sides Rolled Copper FPC |
| PCB Width | 8mm | 10mm |
| PCB thickness | 2OZ | 2OZ |
| PCB color | White | White |
| Adhesive tape | 3M 300LSE Double Sided Adhesive Tape | 3M 300LSE Double Sided Adhesive Tape |
| Wire at end | singel end with 15cm red & black wire | singel end with 15cm red & black wire |
| IP rating | IP20, IP65, IP67, IP68 | IP20, IP65, IP67, IP68 |
| Lifespan | 50,000 hours by keep it 72% brightness | 50,000 hours by keep it 72% brightness |
| Packing | 5meter / roll with anti-static bag | 5meter / roll with anti-static bag |
| Net weight | 145g / roll | 161g / roll |
| Certificates | CE, RoHS | CE, RoHS |
COB LED strip VS SMD LED strip

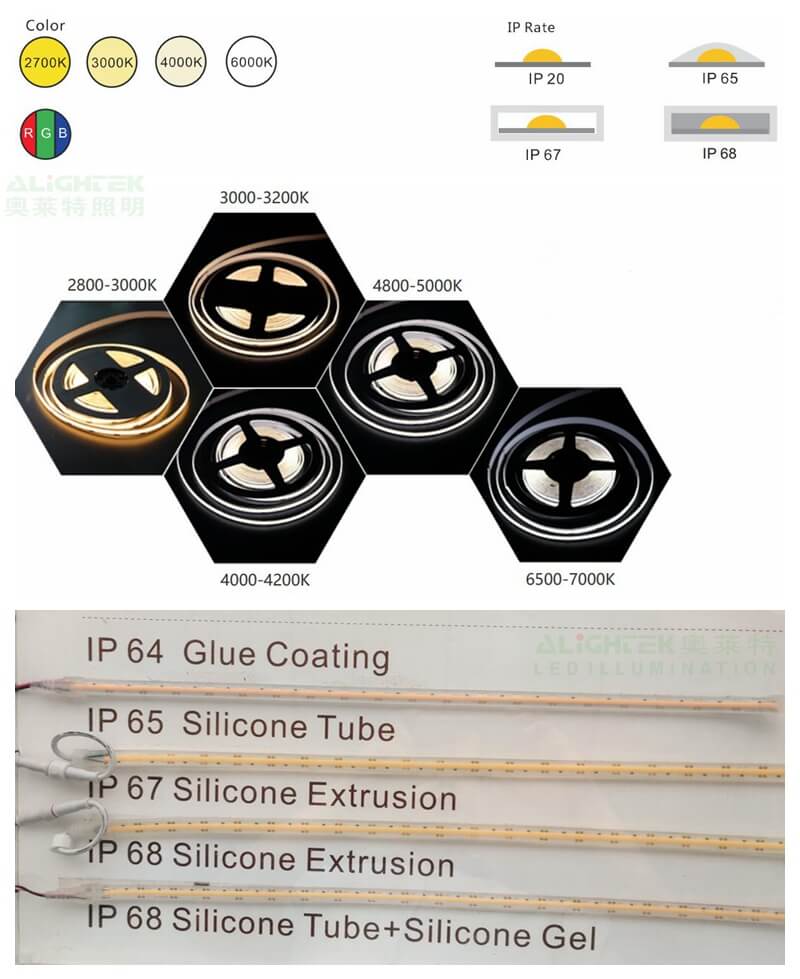

Available color & IP rating:

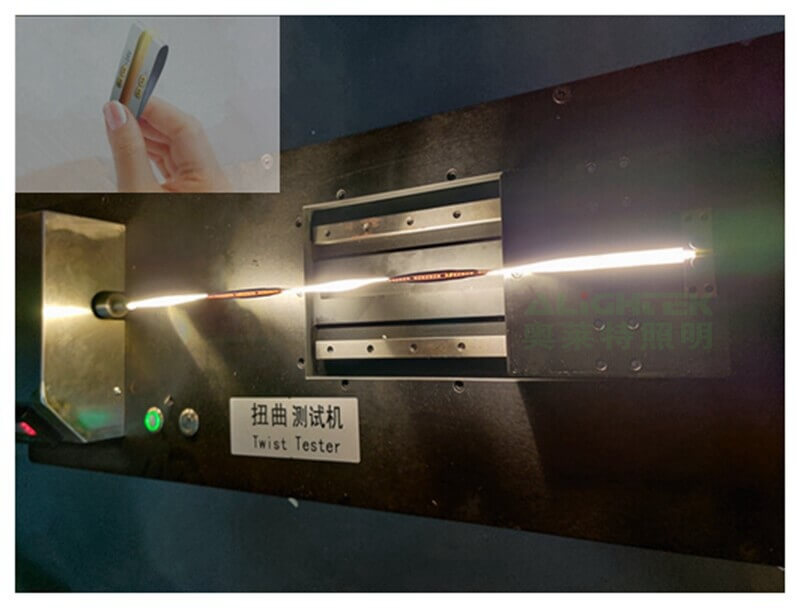

Rough bent testing on our COB LED strip lights, it can be bent freely, the FCOB LED strip lights won't broken easily.
Applications
Residential lighting: Home decoration illumination, etc
Commercial lighting: shops, supermarkets, hotels
Outdoor lighting: Bridge, building outline lighting solution
